Flatbed Trailer Winch Buying Guide: Sliding vs Fixed 2026

A flatbed winch is the trailer-mounted device that tensions winch straps against cargo — and the difference between a sliding double-L design and a fixed-mount classic winch is 20-30 seconds per strap on daily deployment. Across a fleet running 8-strap loads twice daily, that’s 8 minutes per driver per day, 30+ hours per year per truck. Winch selection is not a cosmetic choice — it directly drives loading efficiency, driver back injury rates, and how many stops per shift a driver can make. This is the 2026 flatbed winch buying guide covering sliding vs fixed-mount, portable options, mounting configurations, and the U.S. lane patterns that drive selection.

What this guide is not: it is not an installation walkthrough. For step-by-step mounting instructions, see the companion Trailer Winch Installation guide. What this guide is: a decision-focused buyer’s guide covering sliding vs fixed types, load-vs-loads-per-day math, driver ergonomics, integration with strap inventory, and fleet standardization strategies for flatbed operations.

The numbers driving selection: sliding winches save 20-30 seconds per strap deployment, add $60-$180 upfront per unit vs fixed winches, and pay back the delta in 3-6 months on daily-flatbed operations running 8+ straps per load. The economics favor sliding winches for professional flatbed use, favor fixed-mount classic winches for occasional-flatbed operations, and favor portable winches for specialty trailer configurations.

What a Trailer Winch Actually Does

A trailer winch is a rail-mounted mechanical device with a spool for winch strap end-fitting attachment plus a ratcheting mechanism that tensions the strap when a winch bar is used as leverage. Winches replace hand-ratchet strap operation with a faster, higher-mechanical-advantage tensioning workflow. The driver clips the winch strap end into the winch spool, pulls the strap taut by hand, then uses a winch bar to lever the winch ratchet mechanism to full tension.

Winches are always paired with dedicated winch straps (not ratchet straps). See the 2-inch strap and 4-inch strap categories for winch-compatible webbing.

Two Primary Types: Sliding vs Fixed-Mount

Sliding Winches (Double-L Rail)

Sliding winches ride in a continuous track (the “double-L” rail) along the trailer rub-rail. The winch body slides along the rail to align precisely with the load position — no fixed spacing constraints. Advantages:

• Position flexibility — align winch to exact load position rather than being stuck at 24-inch pocket spacing intervals
• Faster deployment — slide winch to load, clip strap, tension. Saves 20-30 seconds per strap vs walking to next fixed winch position
• Better strap angles — winch aligns perpendicular to load for optimal tension direction
• Ergonomic advantage — driver bends less, reducing back injury rate over years of daily use

Trade-offs: higher upfront cost ($60-$180 more per winch), rail-groove maintenance in Rust Belt salt exposure, small chance of stuck-slide in ice conditions if not cleaned. Best-suited to daily-flatbed operations running 8+ straps per load with frequent load type variety.

Fixed-Mount Classic Winches

Fixed winches bolt to the trailer rail at a specific position and stay there. Standard spacing runs 24-inch on-center along the trailer length, meaning a 48-ft flatbed has ~24 fixed winch positions per side. Advantages:

• Lower upfront cost — $60-$180 less per winch than sliding equivalent
• Simpler mechanism — no rail track, no slide mechanism to maintain
• Cold-weather reliable — no ice-in-groove concerns
• Better for consistent load types — if you always haul the same lumber or pipe size, fixed positioning works fine

Trade-offs: rigid strap positioning may not align perfectly with load edges, driver walks between fixed positions rather than sliding to align, and specialty load configurations require awkward strap angles. Best-suited to specialty operations (lumber haul with fixed bundle sizes, oilfield pipe with consistent load geometry) and to fleets prioritizing lowest upfront cost.

Combination Configurations

Some fleets run a hybrid — sliding winches for the primary 4-6 tie-down positions per side, plus fixed winches for supplementary strap positions. This balances upfront cost with speed of daily deployment on the highest-volume tie-down points.

Winch Bar Compatibility

All flatbed winches require a winch bar for leverage. Two winch bar profiles cover the range:

• Standard winch bar — single-purpose tightening lever for 4-inch winch straps mounted on trailer slide-rail winches. Chrome finish for corrosion resistance.
• Combination winch bar — adds a chain-binder slot at the bar tip, letting one tool serve both winch strap tightening and binder leverage. Common on mixed strap-plus-chain loads.

See the Strap Accessories category for winch bar options plus J-hook plates, protectors, and other strap-side hardware. Fleet standardization tip: pick one winch bar profile fleet-wide to prevent driver tool confusion.

Fleet Winch Count Per Trailer

Standard flatbed winch inventory:

• 48-ft flatbed with sliding winch rail: 10-14 winches per side, 20-28 total per trailer
• 48-ft flatbed with fixed winch positions: ~24 fixed positions per side, ~48 total possible (driver uses 12-20 per load)
• Step-deck or drop-deck: similar count, adjusted for deck length
• RGN or lowboy: minimal winches (4-8 per side) because heavy-haul loads primarily use chains

Fleet standardization considerations: sliding-rail trailers work best when the whole fleet is standardized to the same rail profile (double-L is the industry standard), enabling parts interchange and driver familiarity. Mixed sliding-and-fixed fleets require driver-side awareness of which trailer is which — a small ergonomic penalty but manageable.

Total Cost Comparison

Sliding runs $1,200-$3,500 more upfront per trailer. Time savings of 8 minutes per driver per day (5 strap events × 20-30 seconds saved) translate to 30+ hours per year per truck — worth $1,500-$3,000 in labor cost recovery. Sliding wins on the multi-year math for daily-flatbed operations.

U.S. Regional and Load-Type Selection

• Pacific Northwest lumber corridor — sliding rail dominates. Bundled lumber varies enough that slide-alignment saves significant time per load. Chrome or heavy-duty coated finish for wet-weather protection.
• Texas Gulf oilfield pipe — fixed winches acceptable due to consistent pipe geometry. Sliding rail preferred by newer fleets for speed.
• Rust Belt steel and machinery — sliding rail on newer trailers, fixed on legacy. Chrome finish mandatory due to salt.
• Sun Belt general freight — sliding rail dominates modern fleets. UV-stable coatings preferred to prevent finish degradation.
• Mountain West heavy haul — mixed sliding + fixed. Cold-weather reliability of fixed appreciated in Wyoming and Colorado winters.

Winch Winder Attachment

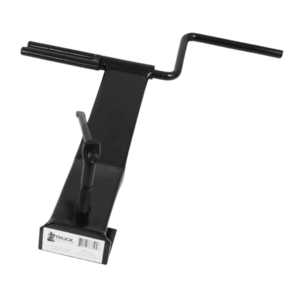

Some fleet operators specify a winch winder — a small mechanical retractor that stores loose strap end between loads and speeds up strap re-storage after tension release. The Black Winch Winder is the fleet standard for U.S. flatbed operations that value time-per-load metrics. Winders add $15-$30 per winch position, save 15-30 seconds per strap end-storage event, and reduce hand-strap-end fatigue on high-volume operations.

Compatibility: Winch Straps Not Ratchet Straps

Winches only work with dedicated winch straps. Winch straps have a specific end-fitting (typically a flat hook or clip) that engages the winch spool. Ratchet straps have integrated ratchet handle mechanisms and are used without winches. Don’t try to mix — a ratchet strap will not seat correctly in a winch spool, and a winch strap cannot be tensioned by hand ratcheting.

Standard winch strap inventory:

• 2-inch winch straps — for pallet freight, ATVs, motorcycles, light cargo (~3,335 lb WLL)
• 4-inch winch straps (top seller) — daily flatbed lumber, steel, machinery duty (~5,400 lb WLL)
• Chain-clevis hybrid winch straps for irregular anchor point requirements

Installation Considerations

Sliding-rail winch installation on new trailers is factory-fitted. Retrofitting an existing fixed-winch flatbed to sliding rail is a shop job costing $1,500-$3,500 in labor plus rail material — sometimes economical when a fleet decides to standardize on sliding across all trailers. Fixed winch replacement (unit-by-unit) is a DIY job with basic hand tools; sliding rail installation requires professional shop capability.

See the companion Trailer Winch Installation guide for step-by-step retrofit and replacement procedures.

Maintenance and Inspection

Weekly (Fleet Trailers)

• Test winch ratcheting mechanism on 3-5 winches per trailer
• Clean sliding rail groove — remove debris, road salt, ice
• Grease winch pivot point (light lithium grease, no over-application)

Monthly (Fleet Trailers)

• Inspect all winch bolts for corrosion and tightness
• Test slide mechanism on every sliding winch (should slide with 5-10 lb of hand force)
• Check chrome or coating condition for repair needs

Annual (Fleet Trailers)

• Full winch retirement inspection — retire deformed spools, cracked ratchet teeth
• Rail groove full clean and re-lubrication
• Torque check all winch mounting bolts to manufacturer specification

Fleet Purchasing Strategy

Fleet purchasing for winches:

• Small fleets (1-3 trailers): spot-purchase individual units, mixed sliding/fixed acceptable
• Medium fleets (4-10 trailers): standardize on one type (sliding or fixed) for parts inventory simplicity
• Large fleets (10+ trailers): standardize on sliding rail, negotiate fleet contract with winch manufacturer for consistent volume discount

Trailer-purchase timing: when specifying new trailers, opt for sliding rail as factory equipment. Retrofitting fixed-winch trailers is more expensive than paying the sliding-rail premium at purchase.

FAQ

Sliding or fixed-mount flatbed winch: which should I buy?

For daily-flatbed operations running 8+ straps per load, sliding double-L winches save 20-30 seconds per strap deployment — 8 minutes per driver per day, 30+ hours per year per truck. Upfront cost is $60-$180 more per winch but pays back in 3-6 months on daily operations. Fixed-mount winches make sense for occasional-flatbed use, consistent load types (fixed pipe sizes, fixed lumber bundles), or lowest upfront cost prioritization.

How many winches per 48-foot flatbed trailer?

Sliding-rail: 10-14 winches per side, 20-28 total per trailer. Fixed-mount: ~24 positions per side (approximately 48 total possible, driver uses 12-20 per load). Step-deck and drop-deck follow similar counts adjusted for deck length. RGN and lowboy heavy-haul use minimal winches (4-8 per side) because heavy loads primarily use chains.

Can I use ratchet straps with a flatbed winch?

No. Winches only work with dedicated winch straps that have flat hook or clip end-fittings designed for winch spool engagement. Ratchet straps have integrated ratchet handle mechanisms and are used without winches. Don’t mix — a ratchet strap will not seat correctly in a winch spool, and a winch strap cannot be tensioned by hand ratcheting.

What winch bar do I need?

Standard winch bar is single-purpose tightening lever for 4-inch winch straps mounted on trailer slide-rail winches. Combination winch bar adds a chain-binder slot at the tip, letting one tool serve both winch strap tightening and binder leverage — common on mixed strap-plus-chain loads. Pick one profile fleet-wide to prevent driver tool confusion.

What is a winch winder and do I need one?

A winch winder is a small mechanical retractor that stores loose strap end between loads and speeds up strap re-storage after tension release. Adds $15-$30 per winch position, saves 15-30 seconds per strap end-storage event, and reduces hand-strap-end fatigue on high-volume operations. Recommended for daily-flatbed fleets running 8+ straps per load; optional for occasional-use operations.

Are sliding winches reliable in cold weather?

Yes with proper maintenance. Sliding rails can accumulate ice or salt debris in Rust Belt and Mountain West winter conditions, potentially seizing the slide mechanism. Weekly rail-groove cleaning and light lithium grease application prevents ice-in-groove failures. Fixed-mount winches have no groove-freeze concern, making them slightly more reliable in extreme cold-weather operations.

Can I retrofit sliding-rail winches on an existing fixed-winch trailer?

Yes, shop retrofit runs $1,500-$3,500 in labor plus rail material per trailer. Economical when a fleet decides to standardize sliding across all trailers. Individual unit-by-unit fixed winch replacement is a DIY job with basic hand tools; full sliding rail installation requires professional shop capability including rail cutting, welding, and re-alignment.

What is the 10-year total cost difference between sliding and fixed?

Sliding double-L runs $3,600-$7,840 initial for a full 48-ft trailer, plus rail maintenance. Fixed-mount runs $2,400-$4,320 initial, plus bolt and spool replacement over time. 10-year lifecycle costs converge to $5,000-$12,000 depending on operation intensity. Time savings on sliding (30+ hours per year in driver time) typically offset the upfront premium within the first 2-3 years on daily-flatbed operations.

The Complete Flatbed Winch Kit

• 20-28 sliding double-L winches per 48-ft trailer (sliding-rail configuration)
• Standard or combination winch bars, 2-4 per driver toolbox
• Optional winch winders for high-volume operations
• 4-inch winch straps (top-seller inventory) — 8-16 per trailer
• 2-inch winch straps for lighter loads — 4-8 per trailer
• Chain-clevis hybrid winch straps for irregular anchor points
• Rail groove maintenance kit (lithium grease, brush, degreaser)
• Monthly slide-test routine plus annual full-torque inspection

Final Word

Flatbed winch selection is one of the highest-leverage decisions in flatbed spec — the design choice compounds across every load, every day, for the life of the trailer. Sliding rail wins for daily professional operations; fixed-mount wins for occasional or lowest-upfront-cost operations. Match the winch to your load type patterns, standardize fleet-wide for parts and training simplicity, and specify sliding at trailer-purchase time rather than retrofitting later. Browse the complete Other Equipment and Straps catalogs at Truck Trailer Pro for the full flatbed winch-and-strap system.
