Heavy equipment tie-down is the second most-cited cargo securement violation in North American Standard Level 1 inspections, and the equipment-specific rules under FMCSA 49 CFR 393.130 dictate exactly how excavators, skid-steers, wheel loaders, dozers, and articulated equipment must be secured. Get the tie-down count wrong on a 25,000-lb excavator on a lowboy in eastern Ohio and the driver is Out-of-Service before the coffee cools. This guide walks the equipment-class rules, tie-down configurations for the five most common machinery types, U.S. equipment-hauling lanes, and the securement gear that stands up to daily construction-fleet duty.
What this guide is not: it is not a general FMCSA overview. For the umbrella rules covering all cargo types, see FMCSA Cargo Securement Rules Explained. What this guide is: the machinery-specific rule (§393.130), the physical tie-down configuration for excavators, skid-steers, wheel loaders, small dozers, and articulated equipment, plus the U.S. rental fleet lanes and construction-season load flow that drives the demand.
The stakes: a shifted excavator on I-70 through West Virginia has closed the interstate for 6+ hours multiple times, machinery-load OOS rates run 3-4x higher than dry van, and the per-load rate for a properly-equipped machinery hauler runs $3.20–$4.50 per mile. Correct securement is the difference between a profitable equipment specialization and a career-ending accident.
The Federal Rule: 49 CFR 393.130 for Equipment 10,000+ lb
FMCSA 49 CFR §393.130 is the heavy-equipment securement rule and applies to any single piece of equipment weighing 10,000 lb or more. The rule sets minimum tie-down counts based on weight and length, requires immobilization of all articulating components (booms, buckets, blades), and mandates chocks or cradles when equipment has rubber tires or tracks that can move on the deck.
The general §393.130 tie-down count formula: minimum 4 tie-downs for equipment 10,000+ lb, plus 1 additional tie-down for every 10 feet of length beyond 10 feet. A 20-ft-long 30,000-lb excavator needs 5 tie-downs; a 30-ft articulated loader needs 6.
The tie-down capacity requirement: aggregate WLL must equal at least 50 percent of the equipment weight, per §393.106. A 30,000-lb machine requires 15,000-lb aggregate WLL. Four 5,400-lb 4-inch straps sum to 21,600 lb aggregate — sufficient. Two chains rated 4,700 lb WLL sum to 9,400 lb — insufficient without additional straps.
Excavator Securement Configuration
Excavators (compact, mid-size, and full-size) are the most-hauled machinery type in North America. The securement configuration:
Pre-Load Preparation
Position the excavator with the boom extended forward, resting on the deck (do not attempt transport with boom raised — center of gravity elevation is a rollover risk). Lower the bucket to the deck. Retract any hydraulic outriggers or blade. Engage the operator’s parking-lock mechanism per the equipment’s operating manual.
Chain Placement
4 chains minimum for excavators 10,000-30,000 lb. Configure:
- 2 chains at the rear of the tracks or undercarriage — attach to the equipment’s factory tie-down points (marked with universal cargo-securement icon) and route down to opposite trailer anchors at 30-45 degree angles.
- 2 chains at the front of the tracks — same configuration, opposite anchors.
- 1 additional chain over the boom or through a boom-anchor point for excavators over 30 ft length or with elevated centers of gravity.
Use grade-70 transport chains for all excavator work. G-70 5/16-inch rates 4,700-lb WLL; 3/8-inch rates 6,600-lb. Match the chain diameter to the individual tie-down WLL requirement.
Boom and Bucket Immobilization
The boom and bucket are articulating components and §393.130 requires them immobilized. Two acceptable methods: (1) rest the bucket fully on the deck with the boom extended straight and locked in place per the manufacturer’s transport-lock procedure; (2) run an additional strap or chain over the boom-to-house junction to prevent rotational movement. Failure to immobilize the boom is a common Level 1 citation.
Skid-Steer and Compact Track Loader Securement
Skid-steers (wheeled and compact-track loaders) are the second most-hauled equipment class. Weights range 5,000-11,000 lb — many fall under the §393.130 10,000-lb threshold and revert to general §393.100 rules, but experienced haulers use §393.130 tie-down counts regardless because the machines are compact and center-of-gravity high.
Skid-Steer Configuration
Position with the loader arms lowered fully, bucket resting on the deck, and parking brake engaged. Configure 4 tie-downs:
- 2 tie-downs at the rear axle or track frame — factory tie-down points, route to opposite trailer anchors
- 2 tie-downs at the front axle or track frame — same configuration
4-inch flatbed straps handle skid-steer weight class comfortably. G-70 chains are the alternative and preferred when hauling in rough weather or on long RGN moves.
Bucket and Attachment Immobilization
Skid-steer buckets and attachments (forks, grapples, augers) must be secured or removed. The three options: (1) hard-lock the bucket to the loader arms and secure with an additional tie-down through the bucket lip; (2) remove the attachment and haul separately; (3) transport with the attachment locked in transport position per the machine’s operating manual. Most fleet operators favor option (3) for standard buckets and option (2) for augers and specialized attachments.
Wheel Loader Securement
Wheel loaders (compact 20,000-35,000 lb and full-size 40,000-100,000+ lb) require heavier tie-downs and specialized RGN or step-deck trailers for anything above the compact range.
Compact Wheel Loader (20-35k lb)
4 tie-downs minimum, plus 1 additional per 10 ft over 10-ft length. Use G-70 3/8-inch chains rated 6,600-lb WLL — 4 chains sum to 26,400 lb aggregate, safely over the 50 percent of 35,000-lb threshold (17,500-lb). Position with the bucket lowered, loader arms fully retracted, and steering-articulation lock engaged (loaders with center-articulation joints must have the lock engaged during transport).
Full-Size Wheel Loader (40,000+ lb)
Requires RGN or double-drop trailer for deck clearance. Tie-down count escalates with length — a 30-ft-long 80,000-lb loader needs minimum 7 tie-downs (4 base + 3 for length). Use 1/2-inch or 5/8-inch G-70 chains rated 11,300 and 15,800 lb WLL respectively. For full-size loader operations, most fleets carry 8 tie-downs to provide margin above minimum.
Small Dozer and Crawler Securement
Small dozers (compact through mid-size, 15,000-45,000 lb) haul similarly to excavators but with track-specific considerations. Because dozers have long low-slung tracks, they seat well on lowboy decks and their tie-down math is straightforward.
Blade and Ripper Handling
Dozer blade angles and rippers must be secured against articulation. Lower the blade fully to the deck, engage transport locks per the operating manual, and run one additional chain over the blade-mounting arm to prevent side-to-side movement. Rear-mounted rippers (single-tooth or multi-tooth) get their own tie-down through the ripper frame.
Track Configuration
Wooden chocks or steel chocks in front of and behind each track prevent forward/rearward roll. Rubber-tracked equipment can chock on the deck; steel-tracked equipment requires steel or hardwood chocks because rubber deck contact can slip.
Articulated Dump Truck and Grader Securement
Articulated equipment (ADTs, motor graders, articulated wheel loaders) presents unique tie-down challenges because the machine has a center-pivot joint that can articulate during transit and shift the load. The mandatory addition: every articulation joint must be locked per the manufacturer’s transport-lock procedure before securement. Failure to engage the articulation lock is a Level 1 citation and a common inspector focus area.
Tie-down configuration for articulated equipment: 6 minimum, with placement following the machine’s center-of-gravity line. For long motor graders (30-40 ft), tie-down count escalates to 7-8 per the §393.130 length formula.
Machinery Hauling Trailer Types
Trailer selection matches equipment size and weight:
| Trailer Type | Max Weight | Typical Equipment | Deck Clearance |
|---|---|---|---|
| Standard flatbed (48 ft) | ~48,000 lb | Skid-steers, compact excavators under 20k lb | ~5 ft deck height |
| Step-deck (48 ft) | ~48,000 lb | Compact wheel loaders, mid-size excavators | ~40 in deck height |
| RGN / double-drop | ~60,000+ lb | Full-size wheel loaders, dozers, articulated equipment | ~18 in deck height |
| Multi-axle lowboy | ~80,000+ lb | Full-size dozers, motor graders, cranes | ~14 in deck height |
Deck clearance matters because federal bridge law limits total vehicle height to 13’6″ (14′ in some western states). A 12’6″ excavator on a 4-ft standard flatbed clears at 16’6″ — well over the limit. Same excavator on an 18″ RGN clears at 14′, legal in most states.
U.S. Equipment-Hauling Lanes and Rates
Machinery freight in the U.S. concentrates around three business models:
- Rental fleet redistribution — moving equipment between regional yards. Peak season: March-October. Rates $3.20-$3.80 per mile.
- Auction transport — Ritchie Bros, IronPlanet, and regional auctions produce concentrated equipment moves after each event. Rates $3.40-$4.20 per mile with dead-mile risk on return.
- Contractor-to-jobsite — dedicated equipment moves for construction firms. Best round-trip economics but requires specialized fleet relationship. Rates $3.30-$4.50 per mile.
Regional hot spots include Texas (oilfield equipment moves), Southeast (residential construction growth), Mountain West (mine and pipeline equipment), and Sun Belt (construction boom zones). For general flatbed rate comparison, see the Flatbed Driver Salary 2026 guide.
Edge Protection at Every Contact Point
Equipment tie-downs contact many sharp edges: track grousers, bucket lips, hydraulic cylinders, factory tie-down points. FMCSA 49 CFR 393.104(b) requires edge protection at every sharp-edge contact. For machinery loads:
- Corner edge protectors on all bucket-lip and blade-edge contacts
- J-hook protectors from the Strap Accessories category where straps pass through factory tie-down rings
- Rubber sleeves on chain contacts with painted equipment surfaces to prevent paint-strike liability
Weather Considerations for Machinery Loads
Machinery loads face weather-specific risks:
Rain and Freeze Cycles
Hydraulic systems on excavators and loaders can develop pressure changes with temperature cycling. Verify hydraulic locks remain engaged after every 200 miles. On multi-day transports, plan overnight stops on paved surfaces to prevent mud from freezing onto tracks and unbalancing the load.
High Wind
Excavators with tall boom positions catch wind like a sail. Sustained crosswinds above 40 mph on I-80 through Wyoming or I-10 through West Texas can shift a properly-secured excavator by 6-12 inches over a 200-mile stretch. Retension all chains at every fuel stop in high-wind conditions.
Cold Weather Track Rubber
Compact track loader rubber tracks stiffen below 15°F, reducing deck grip. Add 1-2 additional tie-downs in cold-weather operations for equipment with rubber tracks. Wooden chocks work well; steel chocks can slip on cold rubber.
Common Machinery Load OOS Violations
The three highest-frequency Out-of-Service violations on machinery loads (2024-2026 FMCSA data):
- Insufficient tie-down count for equipment length (38 percent of machinery OOS events) — the driver used 4 tie-downs on a 25-ft-long piece requiring 5.
- Boom, blade, or attachment not immobilized (24 percent) — excavator boom rotated during transit, bucket articulated free, or dozer blade shifted.
- Articulation joint lock not engaged (11 percent) — motor grader or articulated loader shifted from center-lock position mid-transit.
FAQ
How many tie-downs do I need for a 25,000-lb excavator?
Minimum 4 tie-downs per FMCSA 49 CFR §393.130 for any equipment 10,000-lb or heavier. Add 1 additional tie-down for every 10 feet of length beyond 10 feet. A 20-ft-long 25,000-lb excavator needs 5 tie-downs; a 15-ft compact excavator needs 4. Aggregate WLL must equal at least 50 percent of the equipment weight (12,500 lb for a 25,000-lb machine).
Can I use 4-inch straps for machinery loads or do I need chains?
4-inch straps rated 5,400 lb WLL work for skid-steers, compact track loaders, and equipment under 20,000 lb. For excavators, wheel loaders, dozers, and heavier machinery, grade-70 chains are the industry standard because chain hardware handles the higher WLL requirement at fewer tie-down count. Most experienced machinery haulers carry both — chains for the primary tie-downs and 4-inch straps for supplemental restraint on articulating components.
Do I need to immobilize the excavator boom during transport?
Yes. FMCSA §393.130 requires all articulating components be immobilized. Two acceptable methods: (1) rest the bucket fully on the deck with the boom extended straight and locked per the manufacturer’s transport-lock procedure; (2) run an additional strap or chain over the boom-to-house junction. Failure to immobilize is a Level 1 citation and represents 24 percent of machinery OOS events.
What trailer type do I need for a full-size wheel loader?
Full-size wheel loaders (40,000+ lb) require an RGN (removable gooseneck) trailer or double-drop trailer. The 18-inch deck clearance keeps the total vehicle height under the federal 13’6″ bridge law. Standard flatbeds (5-ft deck) will exceed height limits on any loader taller than 8’6″. Multi-axle lowboys are needed for full-size dozers and motor graders above 60,000 lb.
What does machinery hauling pay per mile?
2026 rates run $3.20-$4.50 per mile depending on trailer type, equipment size, and route. Rental fleet redistribution averages $3.20-$3.80. Auction transport pays $3.40-$4.20 with dead-mile risk on the return. Contractor-to-jobsite freight pays $3.30-$4.50 and offers the best round-trip economics with fleet relationships. RGN and lowboy operators command premium rates due to trailer cost and licensing.
Do I need to lock articulation joints on wheel loaders and motor graders?
Yes. Every articulation joint must be locked per the manufacturer’s transport-lock procedure before securement. Motor graders and articulated wheel loaders have center-pivot joints that can articulate during transit and shift the load. Failure to engage the articulation lock is a Level 1 citation and is a common inspector focus area on articulated equipment.
How do I secure a skid-steer bucket and attachments?
Three options: (1) hard-lock the bucket to the loader arms and secure with an additional tie-down through the bucket lip; (2) remove the attachment and haul separately; (3) transport with the attachment locked in transport position per the machine’s operating manual. Most fleet operators use option (3) for standard buckets and option (2) for augers, grapples, and specialized attachments.
What edge protection do I need for equipment loads?
Edge protection at every sharp-edge contact per FMCSA 49 CFR §393.104(b). Common contact points: bucket lips, blade edges, hydraulic cylinders, track grousers, and factory tie-down rings. Use corner edge protectors on bucket lips and blades, J-hook protectors where straps pass through tie-down rings, and rubber sleeves on chain contacts with painted surfaces to prevent paint-strike liability.
The Complete Machinery Hauler Kit

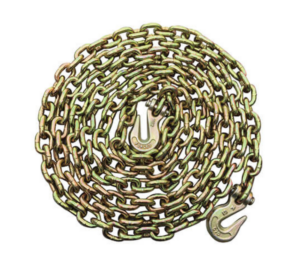

- G-70 transport chains — 4-8 in various diameters (5/16, 3/8, 1/2 inch)
- G-70 grade chain hooks and connectors — spares in the toolbox
- Lever and ratchet binders to match chain count
- 4-inch flatbed straps for compact equipment and supplemental restraint
- Corner and edge protectors at every sharp-edge contact
- J-hook protectors and strap accessories for tie-down rings
- Wooden or steel wheel chocks for wheeled equipment
- Track chocks for rubber-track and steel-track equipment
- Transport-lock verification checklist for each equipment type hauled
Final Word
Machinery hauling is a specialization that combines FMCSA rule discipline with heavy-equipment knowledge. Every excavator, skid-steer, wheel loader, dozer, and articulated machine has its own securement configuration, its own attachment-immobilization requirement, and its own trailer-fit consideration. Get the rules right, invest in the right gear, and machinery freight becomes one of the most consistent-margin flatbed specializations in the U.S. Browse the complete Chains and Binders, Truck Straps, and Machinery Tarps catalogs at Truck Trailer Pro for the full equipment-hauler outfit.
