Steel Coil Transport: Complete FMCSA Securement Guide (2026)

Steel coil securement is the one flatbed load type where FMCSA wrote a rule specifically for the commodity — 49 CFR 393.120 — because the industry lost too many drivers to shifted coils rolling into the sleeper. A 40,000-lb coil that breaks loose on I-70 out of Pittsburgh does not slow down for the cab, and there is no cargo securement failure more consistently fatal than a metal coil that pivots free of its chocks. This guide walks the entire federal rule, the four common coil-loading configurations, the tie-down math for each, and the U.S. mill-to-port lanes where coil hauling pays best.

What this guide is not: it is not a general cargo securement primer. For the umbrella FMCSA rules covering WLL math and standard tie-down counts, see the FMCSA Cargo Securement Rules Explained. What this guide is: the coil-specific rule (§393.120), the physical securement configurations, the mandatory dunnage/chock/protector gear, and the weather and regional load patterns that separate profitable coil haulers from those that burn a tarp per month.

The numbers in this guide reflect the 2026 coil-hauling market: $3.20–$4.10 per mile on Rust Belt steel-mill lanes, 40,000–60,000-lb typical coil weights, and a $12,000–$18,000 median vinyl-tarp claim when a coil crushes the tarp on impact. Get the securement wrong and every mile is a liability event. Get it right and coil hauling is one of the highest-paying flatbed niches in the United States.

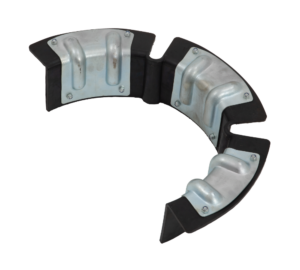

Heavy Duty Metal Coil Protector — Rubber

Rubber-faced steel coil protector rated for 60,000-lb coils. Best seller across Midwest steel-mill fleets.

Coil Tarps — Full Category

3-piece and single-cut coil tarps in 60x60x60 and custom dimensions. UV-treated 18 oz and 22 oz vinyl.

The Federal Rule: 49 CFR 393.120 in Plain Language

FMCSA 49 CFR §393.120 is the metal-coil-specific securement rule and it overrides the general §393.100 aggregate-WLL formula for this commodity. The rule addresses two variables the general rule cannot: the rolling failure mode of a coil (which no strap on top can stop) and the crushing weight of coil-on-coil contact.

The rule breaks coil loads into three orientation categories, each with its own securement math: eyes lengthwise (coil axis parallel to truck length — the most common configuration for wide coils), eyes crosswise (axis across the deck — used for narrow coils and multi-coil loads), and eyes vertical (coil sitting on its face — rare, used for cold-rolled and stainless coils where edge damage matters). Each orientation dictates minimum tie-down counts, chock configuration, and the direction of restraint the tie-downs must provide.

Eyes Lengthwise: The Standard Wide-Coil Configuration

For a coil with its eye running lengthwise (parallel to the truck), FMCSA requires: at least one tie-down through the eye restraining forward motion, at least one tie-down restraining rearward motion, and at least one tie-down over the top of the coil restraining vertical lift. The through-the-eye tie-downs are usually grade-70 G-70 transport chains attached to the coil’s inner diameter and running down to opposite anchor points on the trailer.

The math: a 40,000-lb coil requires an aggregate WLL restraining forward motion of at least 20,000 lb (50 percent of cargo weight per §393.100). A single 5/16-inch G-70 chain rates 4,700 lb WLL — you need 5 chains through the eye or a combination of chains-plus-straps to hit the number. Most Rust Belt haulers use 4 chains through the eye plus 2 top straps for a comfortable 26,000+ lb aggregate.

Eyes Crosswise: The Multi-Coil Configuration

Eyes crosswise (axis across the deck) is the standard for hauling multiple narrower coils in a row. FMCSA requires 2 tie-downs restraining forward motion, 1 restraining rearward, and mandatory chocks or wedges to prevent side-to-side roll. Chocks are non-negotiable in this configuration — no chain configuration alone will hold a crosswise coil against roll on a curved on-ramp.

Chock height must equal at least one-third of the coil radius per the rule. A 60-inch outside-diameter coil requires 10-inch chocks minimum. Wooden beveled lumber wedges (see beveled lumber blocks) are the standard chock material — cheap, replaceable, and correct geometry when cut per spec.

Eyes Vertical: Face-Down Coil Handling

Eyes vertical (coil sitting on its flat face) requires a purpose-built coil rack — a metal cradle that supports the coil off the deck to prevent face damage. The rule requires 2 tie-downs restraining forward motion plus 1 restraining side motion. This configuration is used almost exclusively for cold-rolled steel destined for automotive stampings and stainless coils for appliance manufacturers, where face marring is a rejection-grade defect at the receiver.

The Mandatory Gear List

Coil securement requires more specialized gear than any other flatbed load type. A coil kit for a serious steel-mill hauler runs $3,000–$5,000 in initial investment and lasts 3-5 years under daily duty. The kit:

• 4-6 grade-70 transport chains, 5/16-inch, 20-foot lengths — through-the-eye and over-the-top restraint. Grade-70 (not grade-43 or grade-30) is the industry minimum for coil work per §393.120 hardware ratings.
• 4-6 lever binders or ratchet binders — tension mechanism for the chains. Lever binders are faster; ratchet binders give finer tension control on tight coil pockets.
• 2-4 coil protectors (rubber-faced steel) — placed between the chain and the coil face at every chain contact point to prevent scoring the coil skin. The Heavy Duty Metal Coil Protector is the fleet standard.
• Beveled lumber chocks — geometry-cut wooden wedges for crosswise coil configurations. Replace after 15-20 loads or on visible splitting.
• Coil rack (for eyes-vertical hauls only) — the Standard Duty Coil Rack handles cold-rolled and stainless face-down loads.
• Rubber coil pads and friction mats — placed between the coil and the wood deck to prevent slippage. The 6×48 rubber coil pad and 30×42 friction mat cover most footprint sizes.
• Coil tarp (3-piece or 1-piece cut) — coil-specific tarp geometry with center opening. Browse the coil tarp category for stock sizes.
• 2-inch and 4-inch tie-down straps — top-strap restraint in eyes-lengthwise loads. See the 4-inch strap category for flatbed-grade webbing.

The Load-Out Sequence at the Mill

Steel mill loading follows a repeatable sequence. Get it wrong at the mill and the load will not pass roadside inspection 300 miles later.

Step 1: Pre-Load Deck Prep

Sweep the wood deck clean. Lay friction mats or rubber pads in the coil-contact zone. For eyes-lengthwise loads, position beveled chocks along the length line to keep the coil from rolling during loading. Confirm chain anchor points on both sides of the trailer are clean and functional.

Step 2: Coil Positioning

The mill’s overhead crane places the coil per the loading configuration on the bill of lading — the driver does not choose orientation. Verify the crane operator has centered the coil laterally within 2 inches of trailer centerline. Off-center coils cause axle-loading violations and roll asymmetrically in curves.

Step 3: Chock Placement

Immediately after crane release, place chocks per orientation: eyes lengthwise = 2 chocks front and rear at coil low points; eyes crosswise = chocks on both sides at one-third-radius height minimum. Confirm chocks contact the coil face fully — no gap.

Step 4: Chain Placement

Route chains per the required tie-down count. For eyes lengthwise: 2 chains through the eye running to opposite forward anchors, 2 chains through the eye to opposite rear anchors. Each chain gets a coil protector at the contact point. Tension with binder to just-tight — do not over-torque, which crushes the coil edge.

Step 5: Top Strap and Tarp

Run 2 top straps over the coil for vertical lift restraint. Then position and secure the coil tarp per the tarp’s cut geometry — 3-piece tarps have a center piece plus two side flaps; 1-piece coil tarps drape and secure at the perimeter. Corner protectors go under every strap-to-coil-edge contact point.

U.S. Steel Coil Lanes and Rate Ranges

Steel coil freight in the U.S. is concentrated in specific mill-to-consumer corridors. Rate ranges reflect 2026 spot market pricing:

Detroit and Chicago lanes offer the best round-trip economics because auto parts loads are dense and consistent for return legs. Baltimore port lanes pay a premium but often deadhead the return, which erases the rate advantage. Owner-operators considering a coil specialization should plan lane-pair economics before committing to the gear investment.

Weather Adjustments for Coil Loads

Rain and High Humidity

Steel coils rust on contact with water. A coil that gets wet during transit is a rejection-grade defect at most receivers. Coil tarps are the primary defense; secondary defense is loading during dry-window forecasts and refusing coil loads in predicted heavy rain when no covered dock is available at destination.

Sub-Freezing Temperatures

Cold-weather coil hauling has two failure modes: chain contraction (chains tighten on their own as temperature drops, over-torquing coils and cracking edges) and rubber coil-pad stiffening (pads lose grip below 20°F). Winter protocol: retension chains 30 minutes into the trip after ambient temperature has stabilized. Replace pads with cold-rated compounds for consistent sub-freezing operations.

High Winds on Bridges and Elevated Highways

Cross-winds on I-80 through Wyoming and I-40 through Amarillo create lateral load on wide-face coils. If sustained winds exceed 35 mph and the wind is beam-on (perpendicular to travel), pull over and wait. A crosswise coil in high beam winds can shift chocks despite the tie-down configuration passing inspection.

Roadside Inspection Priorities on Coil Loads

DOT inspectors know the §393.120 rule and check coil securement in a specific order. The four things they verify first:

• Correct tie-down count for the orientation — 2 forward + 1 rearward + top strap for lengthwise; 2 forward + 1 rearward + chocks for crosswise. Count wrong = automatic Out-of-Service.
• Chock height meets or exceeds one-third coil radius — inspectors carry a tape and measure.
• Chain WLL matches or exceeds required aggregate — every chain must have legibly stamped WLL on a tag or on the chain itself.
• Coil protector present at every chain-to-coil contact — missing protectors are a mandatory citation.

For the full DOT inspection process, see What is a DOT Inspection? What Officers Look For — the coil-specific checks fold into the same Level 1 walk-around.

The Three Most Common Coil Securement Violations

FMCSA CSA data from 2024-2026 shows three violations account for 68 percent of all coil-load Out-of-Service events:

1. Insufficient tie-downs for orientation (42 percent of coil OOS events) — usually one chain missing on eyes-lengthwise loads. Driver counted 3 when 4 was required.
2. Chock height below one-third radius (19 percent) — using standard 4×4 blocks on 60-inch coils where 10-inch chocks are required.
3. Missing coil protector (7 percent) — chain contacts coil directly, no rubber-faced steel protector between chain and coil face.

Every one of these is preventable with a proper kit and a systematic loading routine. For the full FMCSA rule text and citation categories, see the FMCSA Cargo Securement Rules Guide.

Coil Hauling Insurance and Contract Considerations

Cargo insurance for coil loads runs higher than general flatbed — most carriers charge a $200,000–$500,000 cargo policy premium for coil-authorized authority because a shifted coil is a catastrophic-loss event. Owner-operators pursuing coil authority should budget an additional $2,000–$3,500 annual premium above general flatbed cargo insurance.

Contract terms specific to coil hauling: expect a mandatory rejection clause allowing the shipper to reject any load where the tarp shows any water intrusion visible at the receiver’s dock; expect a face-mar clause requiring 100 percent inspection at the mill dock before departure. Photograph the coil at the mill dock before every load and again before unloading at the receiver — mill-side documentation is the driver’s only defense against post-delivery damage claims.

Owner-Operator Economics of a Coil Specialization

Coil hauling pays a premium — but the premium reflects the specialization required, not free money. The math:

• Initial gear investment: $3,000–$5,000 for the complete coil kit
• Insurance premium delta: $2,000–$3,500 per year above general flatbed
• Rate premium over general flatbed: $0.40–$0.80 per mile on comparable lanes
• Break-even at 100,000 miles annually: $40,000–$80,000 additional revenue from rate premium, minus $5,000–$8,500 insurance-plus-gear delta = $32,000–$71,500 net annual advantage

The economics favor coil specialization for owner-operators running 100,000+ miles annually on Midwest and Rust Belt lanes with consistent mill access. For company drivers, coil-endorsed positions typically pay a $0.06–$0.10 per mile premium over standard flatbed. For a broader look at flatbed pay economics, see the Flatbed Driver Salary 2026 guide.

Coil Load Refusal Criteria

Every experienced coil hauler maintains a mental checklist of loads they refuse regardless of rate. The five refusal triggers:

• Coil weight exceeds gear capacity — a 65,000-lb coil requires 5/8-inch chains and specialized cradles that a general flatbed kit cannot handle.
• Mill loads without a coil rack when the coil is face-down — this is a safety refusal, not a preference. Loading a face-down coil directly on the deck damages the coil at every pothole.
• Forecast rain with no covered dock at destination — water rejection at the receiver is a driver-paid deadhead return with lost freight.
• Missing bill of lading with weight and orientation specification — legally the driver cannot secure a load without knowing its weight and orientation.
• Damaged coil at loading — pre-existing dents or edge damage become the driver’s liability once the coil leaves the mill.

FAQ

What is 49 CFR 393.120 and does it override the general FMCSA securement rule?

49 CFR §393.120 is the FMCSA metal-coil-specific securement rule and yes, it overrides the general §393.100 aggregate WLL formula for coil loads. The rule dictates minimum tie-down counts per orientation (eyes lengthwise, eyes crosswise, eyes vertical), mandates chock height at one-third coil radius minimum, and requires purpose-built coil racks for face-down loads. Compliance with §393.100 alone is not sufficient — coil loads must meet both rules.

How many chains do I need for a 40,000-lb steel coil eyes lengthwise?

Minimum 4 chains for full compliance: 2 through the eye restraining forward motion and 2 through the eye restraining rearward motion, plus at least 1 top strap for vertical lift restraint. Chains must be grade-70 or higher; 5/16-inch G-70 rates 4,700-lb WLL each, so 4 chains sum to 18,800 lb aggregate — under the 20,000-lb §393.100 threshold. Most professional coil haulers add a 5th chain or 2 top straps to comfortably exceed 24,000 lb aggregate WLL.

What is the minimum chock height for a steel coil?

FMCSA §393.120 requires chock height at least one-third of coil radius. A 60-inch outer-diameter coil has a 30-inch radius, so chocks must be at least 10 inches tall. Standard 4×4 lumber is 3.5 inches — insufficient for any coil larger than about 21 inches outer diameter. Use purpose-cut beveled lumber chocks or purpose-built metal chocks for anything above compact hot-rolled coils.

Can I haul a coil without a coil protector between the chain and the coil face?

No. FMCSA rules require edge protection at every point where a tie-down contacts a sharp cargo edge (49 CFR 393.104(b)), and DOT inspectors specifically check the chain-to-coil interface as a mandatory citation. Rubber-faced steel coil protectors are the standard; missing protectors are a Level 1 inspection violation and can move a routine stop into Out-of-Service.

What does coil hauling pay per mile in 2026?

Steel coil freight rates run $3.20 to $4.10 per mile on established U.S. lanes as of 2026, with premium rates on Pittsburgh-Detroit auto lanes and East Coast port export. This is a $0.40 to $0.80 per mile premium over general flatbed freight, reflecting the specialized gear investment (roughly $3,000-$5,000 initial) and higher cargo insurance premiums ($2,000-$3,500 annually above general flatbed).

Do I need a special CDL endorsement to haul steel coils?

No special CDL endorsement is required beyond a standard Class A. However, most steel mills require an internal loading orientation before allowing new drivers to load — typically a 30-60 minute mill safety walkthrough and observed first load. Some fleets require an internal coil securement certification course before assigning coil freight. For general flatbed CDL preparation, see the CDL Pre-Trip Inspection Checklist.

What happens if a coil shifts during transit?

A shifted coil is an emergency-stop situation. Pull over on the shoulder at the first safe opportunity, put out reflective triangles, and inspect the load. Do not attempt to re-secure a shifted coil without proper lifting equipment — a coil that has broken free of its chocks may be resting on a chain that will spring-release when tension is removed. Contact dispatch and request a wrecker with coil-handling capacity. A shifted coil that is not resecured before the next mile is a CSA-severity violation and a potential criminal negligence event if a subsequent accident occurs.

Are 4-inch straps sufficient for top-strap coil restraint?

Yes for top-strap vertical-lift restraint on coils under 50,000 lb. Standard 4-inch flatbed straps rate 5,400 lb WLL and two straps deliver 10,800 lb aggregate — sufficient for the vertical lift component per §393.120. See the 4-inch strap category for daily-flatbed rated webbing. Chains still handle forward/rearward restraint through the coil eye.

The Complete Coil Hauler’s Gear Checklist

• Grade-70 transport chains, 5/16-inch, 20 ft length — 4 minimum, 6 preferred
• G-70 chain hooks and connectors — spares in the toolbox
• Lever and ratchet binders — 4-6 to match chain count
• Rubber-faced steel coil protectors — one per chain contact
• Beveled lumber chocks — geometry-cut for one-third radius
• Standard duty coil rack — for eyes-vertical loads
• 6×48 rubber coil pad and 30×42 friction mat
• Coil tarps (3-piece or 1-piece)
• 4-inch flatbed straps for top restraint
• Corner and edge protectors at every strap-to-coil edge contact

Final Word

Coil hauling is one of the few flatbed niches where the rules protect the driver from the load. §393.120 exists because the industry lost enough drivers to shifted coils that FMCSA wrote a commodity-specific rule around the physics of round metal cargo. Every element in this guide — the through-the-eye chain configuration, the one-third-radius chock rule, the coil protector requirement — traces back to a real crash. Learn the rule, buy the right gear, load the coil the same way every time, and coil freight becomes one of the highest-margin flatbed specializations in the United States. For the broader flatbed toolkit and companion guides, browse Truck Trailer Pro — every piece of coil-securement gear in this guide ships from U.S. warehouses.
